Plant Cells Through a Microscope: Observing Chloroplasts and Cell Walls

Observing plant cells under a light microscope is a foundational laboratory procedure for students, technicians, and researchers who need to identify and document basic cellular structures. This article provides a practical protocol for preparing and examining onion epidermis and Elodea leaves, with specific attention to chloroplasts, cell walls, and stomata. The guidance covers specimen selection, wet mount preparation, microscope configuration, observation strategies at different magnifications, documentation practices, and common troubleshooting issues. The content is designed for laboratory settings where reproducible results and accurate records matter for teaching, research, or diagnostic workflows.

Laboratory Context and Specimen Selection

Plant specimens differ in their suitability for light microscopy based on tissue thickness, pigmentation, and cell size. Onion epidermis is a standard choice because a single layer of cells can be peeled without sectioning, and the cells are large enough for clear observation of cell walls and nuclei at moderate magnification. Elodea leaves are thin enough for whole mount preparation and contain abundant chloroplasts that remain visible in living cells. Both specimens allow observation of structures without the need for chemical fixation or staining, which preserves native morphology and reduces preparation artifacts.

The choice between onion and Elodea depends on the specific structures targeted. Onion epidermal cells are colorless and provide excellent contrast for cell walls and nuclei, especially when stained with iodine or methylene blue. Elodea leaf cells contain chloroplasts that are naturally green and can be observed in living tissue, making them suitable for studying chloroplast distribution and movement. Stomata are best observed in leaf epidermis preparations, such as peels from the lower surface of a leaf or from a plant like Tradescantia where epidermal strips are easy to obtain.

Specimen quality directly affects observation outcomes. Fresh material is preferable because turgid cells maintain their shape and internal organization. Wilted or aged tissue may show plasmolysis, where the plasma membrane pulls away from the cell wall, which can be mistaken for preparation artifacts. For onion, the inner epidermal layers are thinner and more uniform than outer layers. For Elodea, the youngest leaves near the growing tip are thinnest and contain the most active chloroplasts.

Core Principles of Light Microscopy for Plant Cells

Light microscopy relies on differences in refractive index and absorption to create contrast between cellular structures. Cell walls are visible because they have a higher refractive index than the surrounding cytoplasm and mounting medium. Chloroplasts are visible because chlorophyll absorbs specific wavelengths of light, giving them a green appearance under white light illumination. Nuclei may be faintly visible in unstained cells but become prominent after staining because stains bind to nucleic acids and proteins.

Resolution in light microscopy is limited by the wavelength of visible light and the numerical aperture of the objective lens. The practical resolution limit is approximately 200 nanometers, which means structures smaller than this, such as individual cellulose microfibrils, cannot be resolved with a standard light microscope. This limitation is important for interpreting what can and cannot be observed. Cell walls are typically 0.1 to several micrometers thick and are visible at low magnification, while the detailed architecture of the wall requires electron microscopy or atomic force microscopy. Advanced imaging methods such as atomic force microscopy can reveal the nanoscale organization of cell wall biopolymers, but these techniques are beyond the scope of routine light microscopy.

Magnification and resolution are often confused. Increasing magnification beyond the useful range of the objective lens produces empty magnification, where the image becomes larger but no additional detail is resolved. For plant cell observation, the 10x and 40x objectives provide the most useful balance of field of view and detail. The 100x oil immersion objective is rarely needed for routine plant cell observation because the structures of interest are visible at lower magnification.

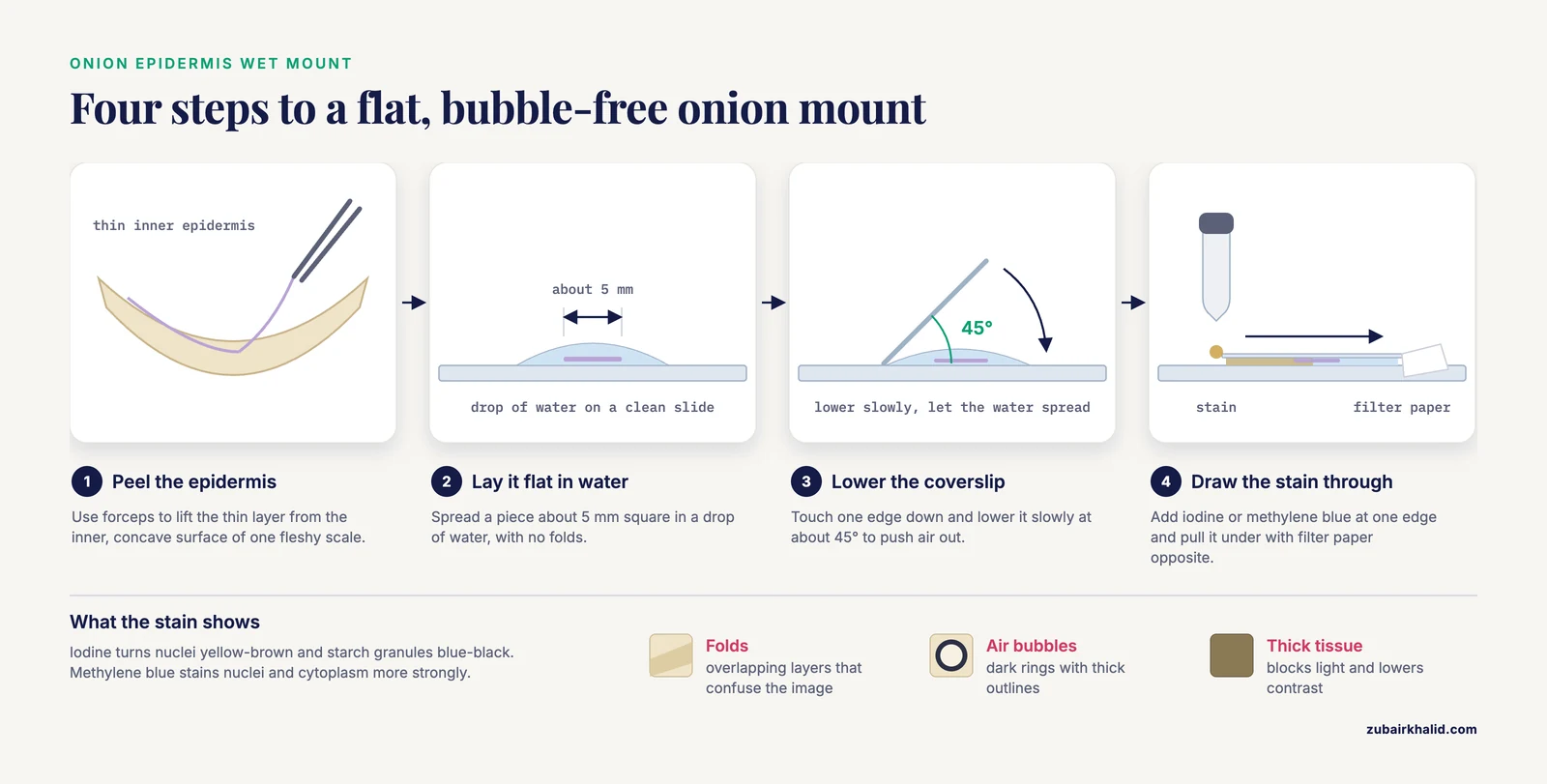

Preparing Onion Epidermis for Observation

Onion epidermis preparation requires a clean slide, a coverslip, a drop of water, and a small piece of onion. The procedure begins by cutting an onion into quarters and selecting one fleshy scale. The thin epidermal layer on the inner concave surface of the scale can be peeled using forceps. A small piece, approximately 5 millimeters square, should be placed flat on the slide in a drop of water. The specimen should be spread carefully to avoid folds, and a coverslip should be lowered gently at an angle to minimize air bubbles.

Staining improves the visibility of cell walls and nuclei. Iodine solution stains starch granules blue-black and makes cell walls and nuclei more visible. Methylene blue stains nuclei and cytoplasm. A drop of stain can be added at the edge of the coverslip and drawn through the specimen using a piece of filter paper applied to the opposite edge. This wicking method replaces the water with stain without disturbing the specimen.

Common preparation errors include folding the epidermis, trapping air bubbles, and using too thick a piece of tissue. Folds create overlapping layers that confuse the image. Air bubbles appear as dark rings and can obscure cells. Thick tissue prevents light transmission and reduces contrast. Each of these errors can be corrected by preparing a fresh mount with attention to flatness and thinness.

Preparing Elodea Leaves for Observation

Elodea is an aquatic plant with thin leaves that can be mounted whole. A single leaf should be removed from near the growing tip using forceps and placed on a slide with a drop of water. The leaf should be spread flat and covered with a coverslip. No staining is required because the chloroplasts are naturally pigmented.

Elodea leaves are several cell layers thick, which can cause blurring when focusing. The best images are obtained by focusing on the upper or lower epidermal layer where cells are most distinct. The internal mesophyll cells contain the highest density of chloroplasts and may appear as a green mass if the leaf is too thick or if the focus is in the middle of the leaf.

Chloroplast movement can be observed in Elodea cells under illumination. The process of cytoplasmic streaming moves chloroplasts along the cell periphery. This movement is visible at 400x magnification and indicates that the cells are alive and metabolically active. If chloroplasts are stationary, the specimen may be damaged, the light may be too intense, or the mounting medium may be inappropriate.

Observing Stomata in Leaf Epidermis

Stomata are pores in the leaf epidermis flanked by guard cells that regulate gas exchange. They are visible in epidermal peels from many plant species. A simple method involves applying clear nail polish to the lower surface of a leaf, allowing it to dry, and then peeling it off with forceps. The nail polish impression preserves the pattern of epidermal cells and stomata and can be mounted on a slide for observation.

Alternatively, a fresh epidermal peel can be obtained by tearing a leaf and pulling the lower epidermis away from the mesophyll. This method works well for species with easily separable epidermis, such as Tradescantia, Rhoeo, or certain grasses. The peel should be mounted in water and observed at 100x or 400x magnification.

Stomatal density and distribution vary by species, leaf surface, and environmental conditions. Counting stomata per unit area requires a calibrated eyepiece graticule or a stage micrometer. The number of stomata per square millimeter can be calculated by counting stomata within a known area and applying the appropriate conversion factor. This measurement is useful for comparing specimens or for documenting responses to environmental conditions.

Microscope Configuration and Illumination

Proper microscope setup is essential for clear observation. The microscope should be placed on a stable surface, and the stage should be level. Köhler illumination, where the light source is focused correctly through the condenser, provides even illumination and optimal resolution. The condenser aperture diaphragm should be adjusted to match the numerical aperture of the objective lens. Closing the diaphragm too far reduces resolution and introduces diffraction artifacts, while opening it too wide reduces contrast.

Brightfield illumination is the default mode for observing stained or naturally pigmented specimens. Unstained specimens with low contrast can be improved by closing the condenser aperture slightly or by using phase contrast if the microscope is equipped with it. Phase contrast enhances the visibility of transparent structures such as cell walls and nuclei without staining.

The choice of objective lens depends on the structures being observed. The 4x objective provides an overview of the specimen and is useful for locating the thinnest areas. The 10x objective is suitable for observing tissue organization and identifying stomata. The 40x objective reveals individual cells, chloroplasts, and nuclei. The 100x oil immersion objective is rarely needed for plant cell observation and requires immersion oil for proper function.

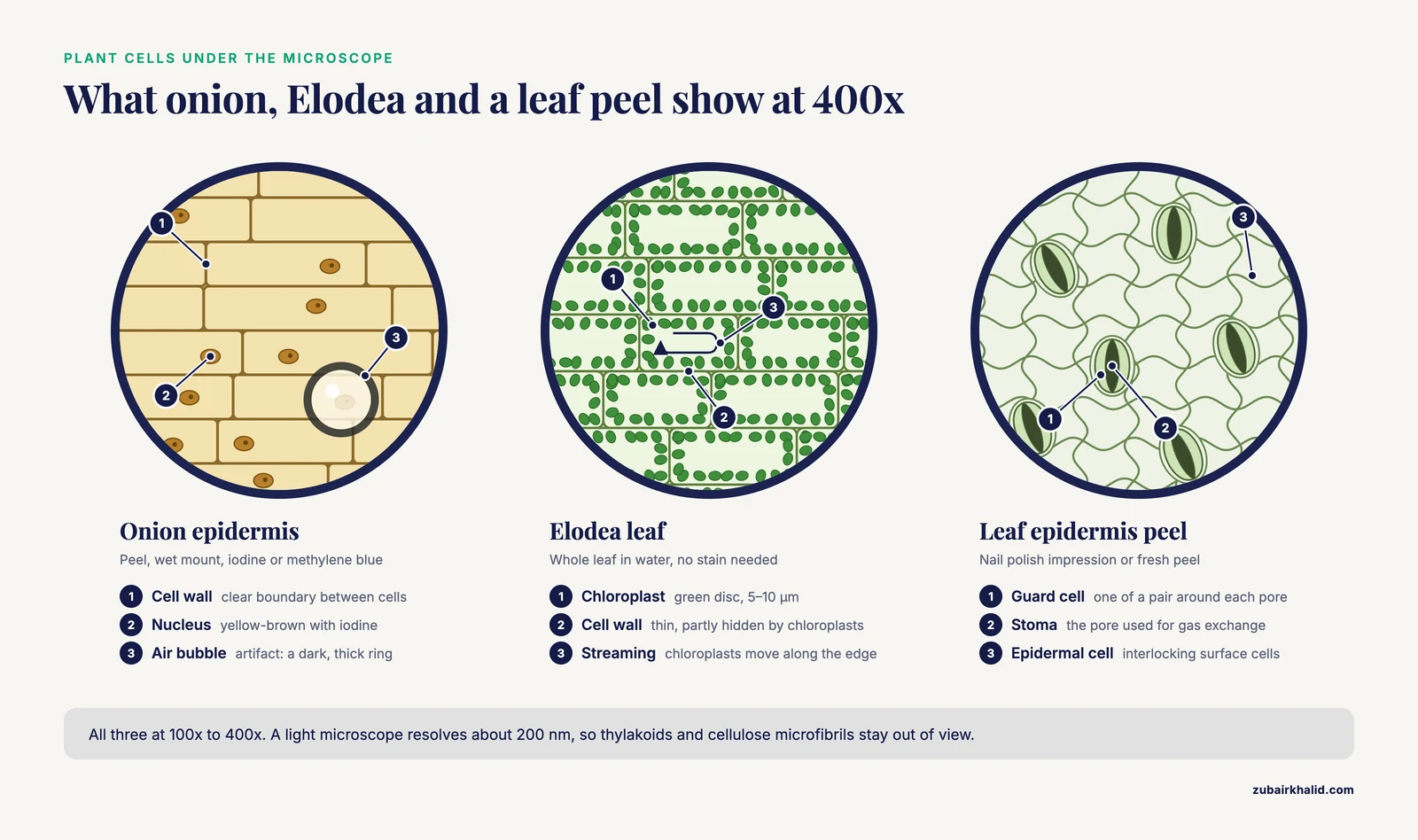

At a Glance: Specimen and Structure Comparison

Observing Chloroplasts in Living Cells

Chloroplasts are the sites of photosynthesis and contain the green pigment chlorophyll. In Elodea cells, chloroplasts are numerous and distributed around the cell periphery, often pressed against the cell wall. Each chloroplast is typically 5 to 10 micrometers in diameter and appears as a green disc or oval under the light microscope. Internal structures such as thylakoid membranes and starch granules are not resolvable with light microscopy but can be studied with electron microscopy.

Chloroplast movement is a dynamic process that can be observed in living cells. Cytoplasmic streaming moves chloroplasts along actin filaments, and the rate of movement depends on temperature, light intensity, and cell health. Observing this movement confirms that the cells are alive and provides a simple assay for cell viability. If chloroplasts are stationary, the specimen may be damaged during preparation, the mounting medium may be hypotonic or hypertonic, or the illumination may be too intense.

The interaction of external materials with chloroplasts can affect their activity. Studies using biolayer interferometry coupled with confocal microscopy have shown that graphene oxide particles can be taken up by chloroplasts and alter their activity, with some forms increasing activity and others causing redox imbalance. This research demonstrates that chloroplast function can be influenced by environmental contaminants, which is relevant when interpreting observations from field-collected specimens.

Observing Cell Walls and Their Limitations

Cell walls are rigid structures that surround plant cells and provide mechanical support. In light microscopy, cell walls appear as clear boundaries between adjacent cells. The middle lamella, which cements adjacent cells together, is not visible as a distinct layer in most preparations. Primary and secondary cell walls cannot be distinguished by routine light microscopy, although staining with specific dyes such as phloroglucinol can indicate the presence of lignin in secondary walls.

The cell wall is a complex structure composed of cellulose microfibrils embedded in a matrix of pectin, hemicellulose, and proteins. The nanoscale organization of these components is beyond the resolution of light microscopy. Atomic force microscopy can reveal the arrangement of cellulose microfibrils and measure the mechanical properties of cell walls, but this technique requires specialized equipment and sample preparation. Scanning near-field optical microscopy can provide subdiffraction-limited chemical and structural characterization of cell walls, but it is not a routine laboratory method.

For routine observation, the cell wall is best appreciated as a structural boundary that maintains cell shape and resists turgor pressure. Plasmolysis experiments, where cells are placed in hypertonic solutions, demonstrate the semipermeable nature of the plasma membrane and the rigidity of the cell wall. When the protoplast shrinks away from the wall, the wall remains intact, confirming its structural role.

Magnification Comparison and Image Interpretation

Image interpretation requires attention to artifacts. Air bubbles appear as dark circles with thick outlines. Folded tissue creates overlapping cell patterns that are difficult to interpret. Precipitated stain can appear as dark granules that may be mistaken for cellular structures. Each artifact has a characteristic appearance that can be recognized with practice.

Practical Workflow for Plant Cell Observation

The following workflow provides a systematic approach to observing plant cells under a light microscope.

First, prepare the specimen. Select fresh material and prepare a wet mount as described above. Label the slide with the specimen type, date, and preparer initials. Record the mounting medium and any stains used.

Second, set up the microscope. Turn on the light source and adjust the intensity to a comfortable level. Place the slide on the stage and secure it with stage clips. Use the 4x objective to focus on the specimen, then adjust the condenser and aperture for even illumination.

Third, scan the specimen at low magnification. Identify the thinnest, most uniform areas for detailed observation. Note any artifacts or irregularities. For onion epidermis, locate areas where the cells form a single layer. For Elodea, focus on the leaf margin where the tissue is thinnest.

Fourth, increase magnification progressively. Move to the 10x objective and refocus using the fine focus knob. Observe the general cell arrangement and identify structures of interest. Move to the 40x objective and observe details such as chloroplasts, nuclei, and cell walls. Adjust the illumination as needed to maintain contrast.

Fifth, document observations. Record the structures observed, their distribution, and any notable features. Take photomicrographs if the microscope is equipped with a camera. Include a scale bar or record the magnification for each image.

Sixth, clean up properly. Remove the slide from the stage, clean the objectives if they were contaminated, and turn off the microscope. Dispose of biological material according to laboratory protocols.

Records and Measurements

Accurate records are essential for reproducible observations and for comparing specimens over time. The following information should be recorded for each observation session.

Specimen information includes the species, cultivar or variety, source, collection date, and storage conditions. For onion, record whether the epidermis was from the inner or outer scale and whether the tissue was fresh or stored. For Elodea, record whether the plant was from a culture tank or field collection and the water conditions.

Preparation information includes the mounting medium, any stains used, the time between preparation and observation, and the ambient temperature. These factors can affect cell condition and chloroplast movement.

Microscope information includes the microscope model, objective lenses used, illumination settings, and any filters or contrast enhancement methods. This information allows other observers to reproduce the same viewing conditions.

Observations should include a description of the structures seen, their distribution, and any abnormalities. For chloroplasts, record their color, size, distribution within cells, and whether movement was observed. For cell walls, record their thickness, uniformity, and any evidence of damage or degradation. For stomata, record their density, distribution, and whether guard cells appeared turgid or flaccid.

Measurements should be recorded with appropriate units and precision. Cell dimensions can be measured using a calibrated eyepiece graticule. Stomatal density is expressed as the number of stomata per square millimeter. Chloroplast size can be estimated at high magnification, but precise measurement requires calibration.

Common Failure Patterns and Troubleshooting

Several common problems can compromise plant cell observation. Recognizing these patterns allows for rapid correction.

Poor contrast is often caused by incorrect illumination. The condenser aperture may be too open or too closed, or the light intensity may be too high. Adjust the aperture diaphragm and reduce light intensity to improve contrast. For unstained specimens, phase contrast or darkfield illumination may help.

Air bubbles in the mount appear as dark rings and obscure cells. They are caused by lowering the coverslip too quickly or by trapping air during specimen placement. Prepare a fresh mount and lower the coverslip slowly at an angle.

Folded tissue creates overlapping cell layers that are difficult to interpret. This is common with onion epidermis that is too large or handled roughly. Use a smaller piece of tissue and spread it carefully with forceps.

Blurred images at high magnification may be caused by specimen thickness, coverslip thickness, or incorrect focus. For Elodea, focus on the upper cell layer. For onion, ensure the epidermis is flat and thin. Use the fine focus knob to find the sharpest plane.

Chloroplasts that are stationary may indicate cell death, excessive illumination, or incorrect mounting medium. Check the viability of the specimen by observing other cells. Reduce light intensity and ensure the mounting medium is isotonic.

Staining artifacts appear as irregular dark deposits that do not correspond to cellular structures. This is caused by excessive stain or insufficient washing. Prepare a fresh mount with less stain or wash the specimen after staining.

Quality Controls and Verification

Quality control in microscopy involves verifying that the microscope is functioning correctly and that observations are reliable. The following checks should be performed regularly.

Resolution checks use a test specimen with known fine detail, such as a diatom frustule or a stage micrometer. The smallest resolvable detail indicates the effective resolution of the system. If resolution is poor, check the objective lenses, condenser alignment, and coverslip thickness.

Calibration checks verify the accuracy of measurements. The eyepiece graticule should be calibrated against a stage micrometer for each objective lens. Calibration should be repeated if the eyepiece or objectives are changed.

Contamination checks ensure that slides, coverslips, and mounting media are clean. Dust and fibers can be mistaken for cellular structures. Clean slides and coverslips with lens paper and store them in dust-free containers.

Biological controls verify that the specimen preparation method produces expected results. A known specimen, such as a prepared onion epidermis slide, should show the expected structures. If the expected structures are not visible, the preparation method or microscope may be faulty.

The World Health Organization Laboratory Quality Management System Handbook provides guidance on establishing quality control procedures in laboratory settings. These principles apply to microscopy work, including documentation, equipment maintenance, and personnel training.

Biosafety and Laboratory Practice

Plant cell observation is generally low risk, but standard laboratory safety practices should be followed. The World Health Organization Laboratory Biosafety Manual provides guidance on safe handling of biological materials and proper laboratory practices.

Specimens should be handled with clean forceps or gloves to avoid contamination. Slides and coverslips should be disposed of in sharps containers. Mounting media and stains should be handled according to their safety data sheets. Some stains, such as iodine and methylene blue, are low toxicity, but others may require additional precautions.

Live plant material may contain microorganisms, fungi, or plant pathogens. Specimens from field collections should be inspected for visible contamination before preparation. If mold or rot is present, the specimen should be discarded or handled with additional precautions.

Used slides and coverslips should be disposed of properly. Reusable slides should be cleaned and sterilized before reuse. Coverslips are typically single use and should be discarded after observation.

The Assay Guidance Manual from the National Center for Advancing Translational Sciences provides general guidance on assay development and quality control that can be applied to microscopy-based observations. The Bioanalytical Method Validation Guidance from the U.S. Food and Drug Administration is relevant when microscopy observations are used to support quantitative measurements or regulatory submissions.

Limitations of Light Microscopy for Plant Cell Observation

Light microscopy has inherent limitations that affect what can be observed and interpreted. The resolution limit of approximately 200 nanometers means that subcellular structures such as thylakoid membranes, ribosomes, and cellulose microfibrils cannot be resolved. The depth of field is shallow at high magnification, so thick specimens cannot be fully focused in a single image.

Living specimens can only be observed for limited periods. Photobleaching reduces fluorescence in stained specimens, and heat from the light source can damage living cells. Cytoplasmic streaming in Elodea slows and stops after extended observation, particularly under intense illumination.

Quantitative measurements are limited by the accuracy of calibration and the subjective nature of visual assessment. Cell dimensions can be measured with reasonable accuracy, but measurements of organelle size and density are less reliable. Automated image analysis can improve objectivity but requires appropriate software and validation.

The interpretation of observations requires knowledge of plant anatomy and cell biology. Structures that appear similar under the microscope may have different identities, and artifacts can mimic real structures. Confirmation of observations often requires additional techniques, such as specific staining, electron microscopy, or molecular markers.

Advanced microscopy techniques can overcome some of these limitations. Super-resolution microscopy methods such as structured illumination microscopy and stimulated emission depletion microscopy can resolve structures below the diffraction limit, but they require specialized equipment and sample preparation. Electron tomography can provide three-dimensional reconstructions of cells and organelles at nanometer resolution. Expansion microscopy can achieve super-resolution imaging by physically expanding the specimen before observation. These techniques are valuable for research applications but are not necessary for routine plant cell observation.

Professional Escalation Criteria

Most plant cell observations can be completed and interpreted by trained laboratory personnel. However, certain findings warrant escalation to a supervisor, senior researcher, or specialist. The following criteria indicate when additional expertise is needed.

Unexpected structures that cannot be identified should be documented and reviewed by a colleague with more experience. This is particularly important if the structures resemble pathogens, pests, or cellular abnormalities.

Quantitative measurements that fall outside expected ranges should be verified and reviewed. For example, stomatal density that is much higher or lower than published values for the species may indicate an error in measurement, an unusual specimen, or an environmental effect.

Specimens that show signs of disease, such as fungal hyphae, bacterial colonies, or cellular necrosis, should be documented and reported. The specimen may need to be referred to a plant pathology laboratory for identification.

Observations that will be used for regulatory submissions, publication, or diagnostic decisions should be reviewed by a second qualified observer. The review should confirm the identification of structures and the accuracy of measurements.

Equipment problems that cannot be resolved by routine troubleshooting should be reported to the laboratory manager or equipment service provider. Continued use of a malfunctioning microscope can produce unreliable results.

Frequently Asked Questions

Why can I see cell walls in onion cells but not in Elodea cells?

Onion epidermal cells have thick, prominent cell walls that are easily visible because the cells are large and the cytoplasm is transparent. Elodea cells also have cell walls, but they are thinner and the dense chloroplasts can obscure the wall boundaries. Focusing carefully on the cell periphery and adjusting the illumination can make cell walls more visible in Elodea.

What is the best stain for observing onion cell nuclei?

Iodine solution is a common choice because it stains nuclei yellow-brown and also stains starch granules blue-black. Methylene blue stains nuclei more intensely and provides better contrast for nuclear observation. Both stains are safe for routine teaching and research use.

Why are chloroplasts moving in my Elodea preparation?

Chloroplast movement is caused by cytoplasmic streaming, which is a sign of living, metabolically active cells. The movement transports chloroplasts and other organelles around the cell and is driven by the cytoskeleton. If the chloroplasts stop moving, the cells may be damaged, the light may be too intense, or the mounting medium may be inappropriate.

How can I measure stomatal density?

Stomatal density is measured by counting stomata within a known area and converting to stomata per square millimeter. Calibrate the eyepiece graticule using a stage micrometer, then count stomata in several fields of view at a known magnification. Calculate the area of each field and divide the number of stomata by the area.

Why does my onion epidermis preparation have air bubbles?

Air bubbles are caused by trapping air when the coverslip is lowered. To avoid this, lower the coverslip slowly at a 45 degree angle and allow the water to spread across the specimen before releasing the coverslip. If bubbles persist, prepare a fresh mount with more water.

Can I observe chloroplasts in onion cells?

Onion epidermal cells do not contain chloroplasts because the bulb is not photosynthetic tissue. Chloroplasts are found in photosynthetic tissues such as leaves. To observe chloroplasts, use Elodea leaves or a thin section of a green leaf.

What is the difference between a cell wall and a cell membrane?

The cell wall is a rigid structure outside the plasma membrane that provides mechanical support and maintains cell shape. The cell membrane, also called the plasma membrane, is a thin lipid bilayer that controls the movement of substances into and out of the cell. The cell wall is visible under a light microscope, while the cell membrane is generally not visible without specialized techniques.

Why is my image blurry at 400x magnification?

Blur at high magnification can be caused by specimen thickness, incorrect focus, or coverslip thickness. Ensure the specimen is thin and flat, use the fine focus knob to find the sharpest plane, and verify that the coverslip is the correct thickness for the objective lens. If the image remains blurry, check the objective lens for contamination.
