Hematology Analyzer Troubleshooting: Common Issues and Solutions

Hematology analyzers are essential diagnostic instruments in clinical laboratories, veterinary practices, and research facilities. These automated systems perform complete blood counts (CBC), white blood cell differentials, and other hematimetric parameters with high throughput and precision. However, like all complex instrumentation, they are subject to operational failures that compromise result accuracy and laboratory efficiency. This article provides a structured troubleshooting framework for the most common hematology analyzer issues, including clogs, air bubbles, abnormal histograms, carryover contamination, and quality control failures. The guidance is intended for laboratory students, technicians, researchers, and diagnostic professionals who operate these instruments and need practical, evidence-informed approaches to identify, resolve, and prevent analytical errors.

At a Glance: Common Hematology Analyzer Issues and Initial Responses

Understanding Hematology Analyzer Operating Principles

Hematology analyzers measure blood cell parameters using several established technologies. Impedance-based counting, also known as the Coulter principle, measures changes in electrical resistance as cells pass through an aperture. Optical or flow cytometric methods use light scatter and fluorescence to characterize cell size, granularity, and complexity. Some modern analyzers combine multiple technologies to provide five-part differentials and extended flagging capabilities.

The operational architecture of these instruments typically involves a master-slave configuration where a management computer coordinates with control modules for fluidics, optics, and data processing. The system architecture design of operation management software has been developed to expand and manage multiple control machines, with systematic maintenance plans proposed for software modification and unreasonable maintenance during the development process [18]. Understanding this architecture helps technicians recognize that errors may originate in hardware components, software algorithms, or the interface between them.

The NOVA Celltrak 12 evaluation demonstrated that precision, linearity, carryover, and reproducibility of values compared favorably to manufacturers' claims, with correlation coefficients greater than 0.98 for measured parameters except RDW at 0.84, MCV at 0.96, and MPV at 0.92 [9]. This study also noted that three-part differential information and an expanded flagging system afforded increased clinical information and troubleshooting guides [9]. These findings illustrate that while modern analyzers perform well, specific parameters may require additional attention during troubleshooting.

Core Principles of Systematic Troubleshooting

Effective troubleshooting follows a logical progression from problem identification through root cause analysis to corrective action. The first step is always to confirm that the problem exists and characterize its nature. This involves reviewing analyzer messages, examining histograms and scatterplots, and determining whether the issue affects a single sample, multiple samples, or specific parameters.

The modular component design of many analyzers makes operation, troubleshooting, and preventive maintenance relatively easy [7]. This design philosophy means that technicians can isolate problems to specific subsystems such as fluidics, optics, electronics, or software. The computer system integrated into modern analyzers provides diagnostic information that guides the troubleshooting process [7].

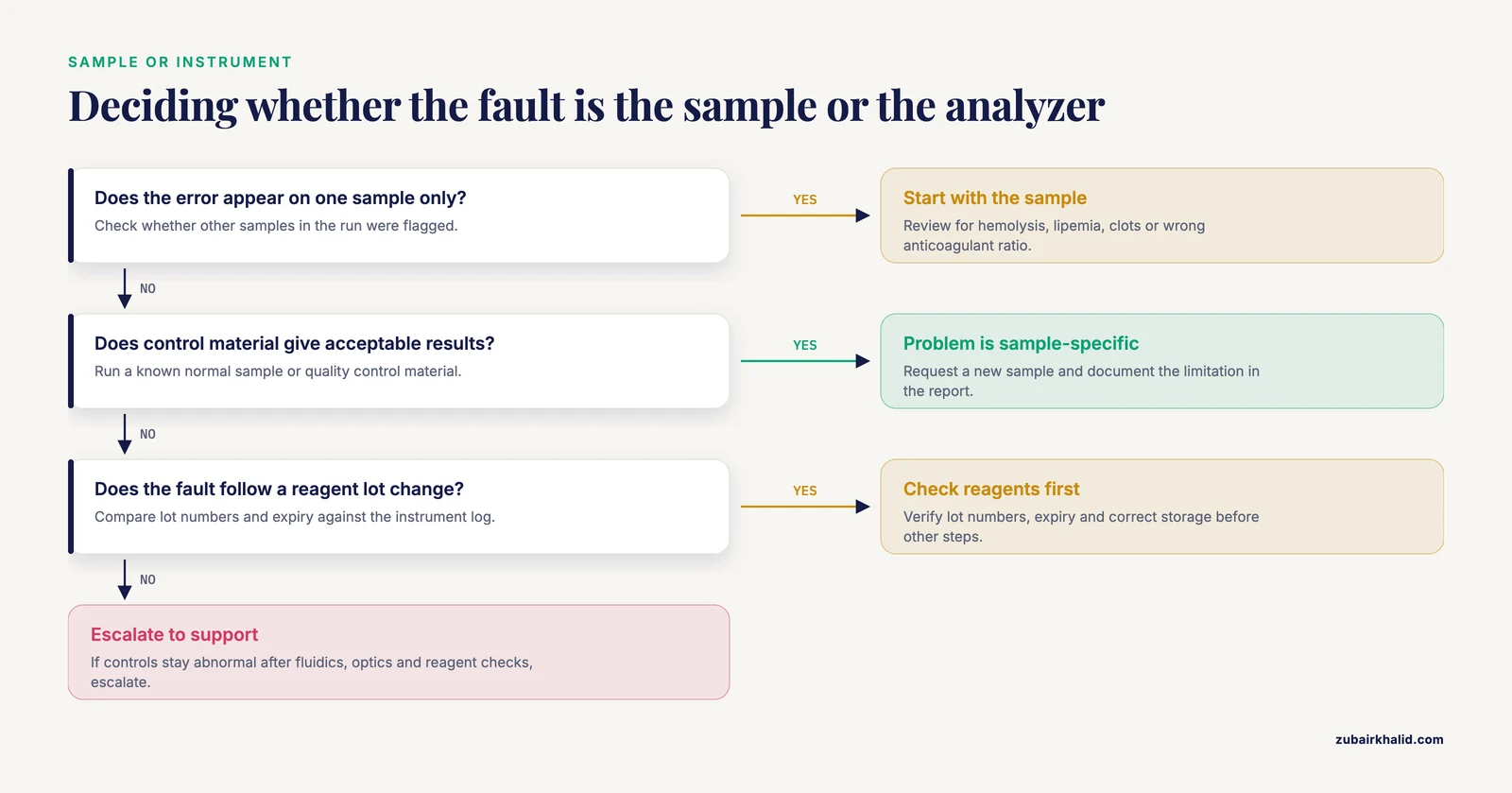

A structured approach to troubleshooting includes the following steps:

1. Document the exact error message or abnormal result pattern

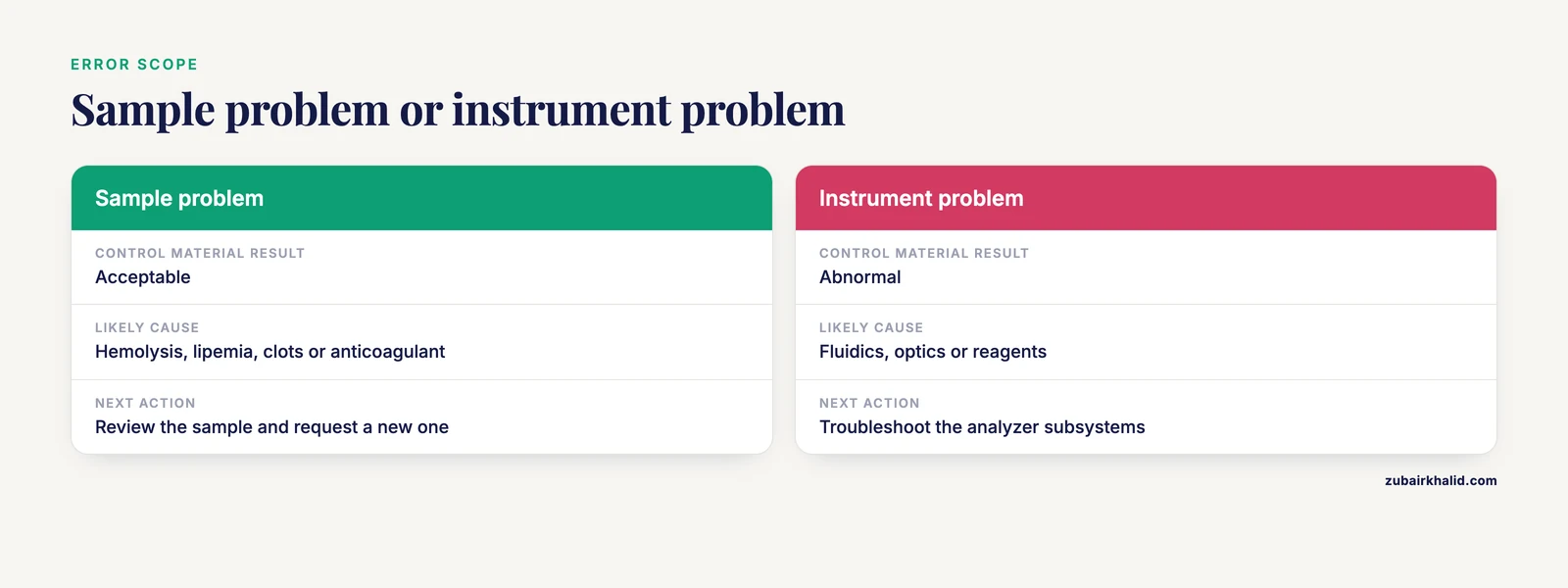

2. Determine the scope of the problem (single sample, batch, or systematic)
3. Review recent maintenance history and reagent changes
4. Check sample quality and collection conditions
5. Run appropriate prime, flush, or cleaning cycles
6. Analyze quality control materials to verify instrument function
7. Escalate to manufacturer support if the problem persists

The autovalidation procedures developed by the Croatian Society of Medical Biochemistry and Laboratory Medicine emphasize that standard rules included in the algorithm are patient data, messages from the analyzer, values of interference indices, autovalidation range, and delta check [15]. These same principles apply to troubleshooting, where analyzer messages and interference indices provide critical diagnostic information.

Sample Collection and Preparation Issues

Anticoagulant Concentration and Mixing Errors

The ratio of blood to anticoagulant is critical for accurate hematology results. EDTA is the standard anticoagulant for CBC analysis, and the recommended concentration is typically 1.5 to 2.2 mg per milliliter of blood. Underfilled tubes produce relative excess of anticoagulant, which can cause cell shrinkage, reduced MCV, and altered platelet counts. Overfilled tubes may result in inadequate anticoagulation and microclot formation.

Sample mixing is equally important. Inadequate mixing allows cells to settle, producing non-homogeneous samples that yield inaccurate counts. Over-vigorous mixing can cause hemolysis and platelet activation. The standard practice is to invert tubes gently 8 to 10 times immediately after collection and again before analysis.

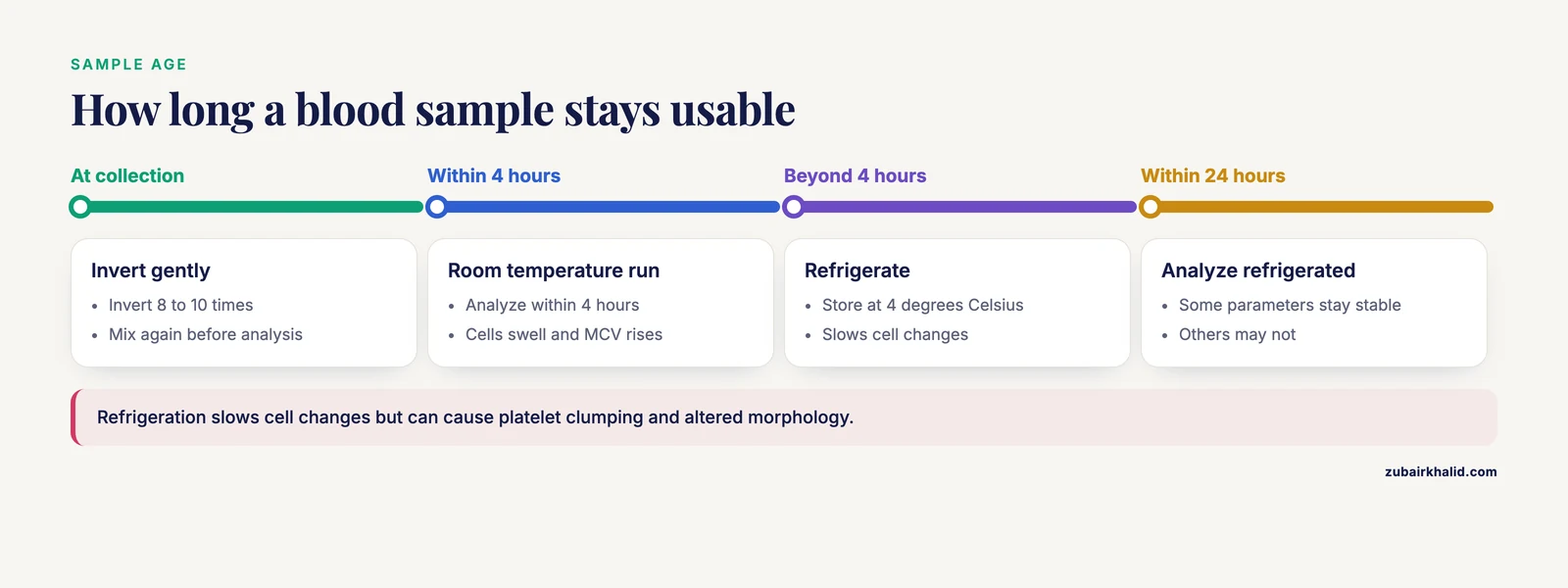

Sample Age and Storage Conditions

Blood samples undergo progressive changes after collection. Storage at room temperature leads to cell swelling, increased MCV, and decreased RBC counts over time. Refrigeration slows these changes but can cause platelet clumping and altered morphology. The stability of CBC parameters during extended storage at 4 degrees Celsius has been evaluated, with findings relevant to laboratories that may experience delays between collection and analysis [19].

For accurate results, samples should be analyzed within 4 hours of collection when stored at room temperature. If analysis is delayed beyond this period, samples should be refrigerated and analyzed within 24 hours, with the understanding that some parameters may show acceptable stability while others may not [19].

Hemolysis and Lipemia Interference

Hemolyzed samples produce spurious results for several parameters. Released hemoglobin from lysed red cells artificially elevates hemoglobin measurements and can interfere with optical counting methods. Lipemia causes light scatter interference that affects hemoglobin measurement and some cell counts. Icteric samples may also produce interference in optical systems.

Laboratories should establish visual inspection protocols for sample quality before analysis. Automated analyzers often include interference indices that flag hemolysis, lipemia, and icterus. The autovalidation algorithm includes values of interference indices as standard rules for result verification [15]. When interference is detected, the laboratory should either request a new sample or document the limitation in the result report.

Fluidics System Troubleshooting

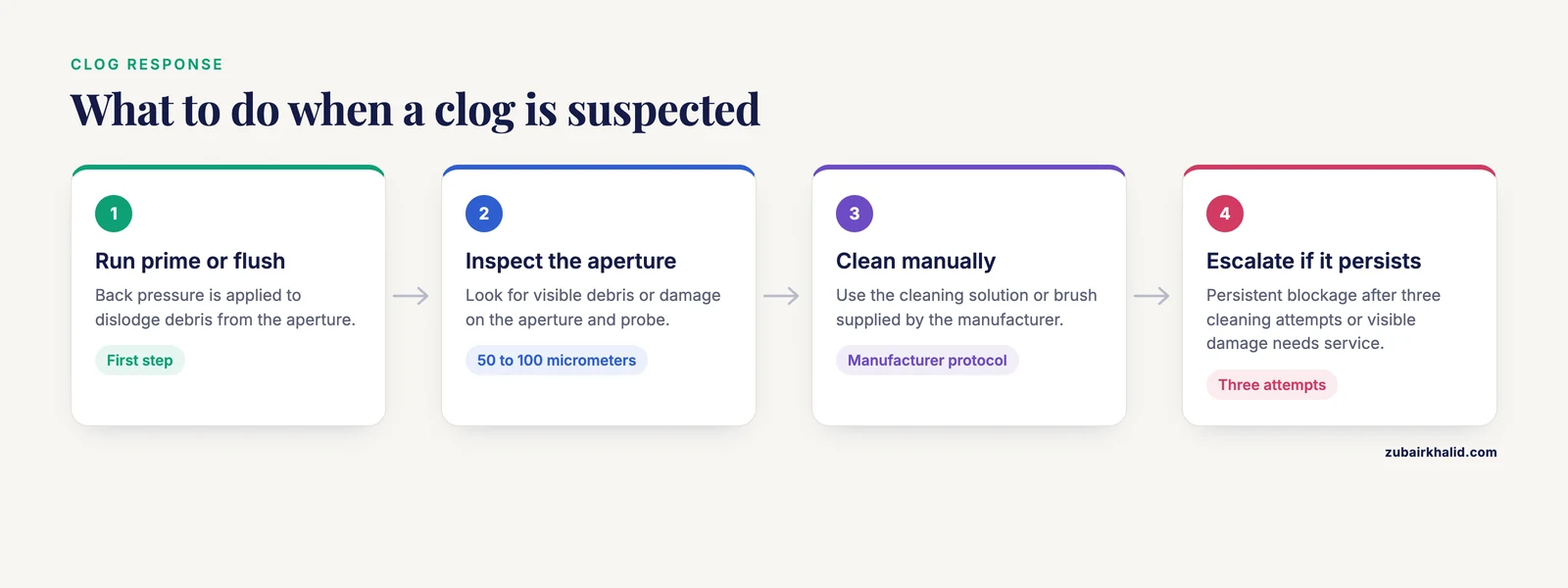

Aperture and Probe Clogs

Clogs are among the most frequent causes of hematology analyzer failure. The aperture through which cells pass for impedance counting is typically 50 to 100 micrometers in diameter. Fibrin strands, platelet aggregates, or other debris can partially or completely obstruct this aperture. Symptoms of a clog include elevated pressure readings, prolonged analysis time, and erratic or decreased cell counts.

The initial response to a suspected clog is to run the instrument's prime or flush cycle. This action applies back pressure to dislodge debris from the aperture. If the clog persists, the operator may need to perform a manual cleaning procedure using a specialized cleaning solution or brush provided by the manufacturer. The aperture should be inspected visually for visible debris or damage.

For analyzers using disposable electrodes or cartridge-based systems, troubleshooting for clots and clogs is easier because the affected component can be replaced instead of cleaned [12]. This design advantage was noted in the evaluation of cartridge-based point-of-care methods, where disposable electrodes simplified maintenance [12].

Air Bubble Ingestion

Air bubbles in the fluidic system cause spurious results by displacing sample or reagent volumes and interfering with optical measurements. Common causes include empty reagent containers, loose tubing connections, and damaged pump diaphragms. Air bubbles may also be introduced during reagent container replacement if the system is not properly primed afterward.

The troubleshooting approach for air bubbles involves checking reagent levels, inspecting all tubing connections for tightness, and running purge cycles to expel trapped air. If bubbles recur, the operator should inspect pump diaphragms and valves for wear or damage. Some analyzers have bubble detection sensors that alert the operator to this condition.

Reagent and Waste Line Issues

Blocked or kinked waste lines cause pressure buildup that affects fluidic operations. Reagent lines with restricted flow produce inadequate reagent delivery and compromised analysis conditions. Regular inspection of all lines for kinks, blockages, and deterioration is an essential preventive maintenance activity.

The systematic maintenance plan for hematology analyzers includes scheduled inspection and replacement of tubing components [18]. Laboratories should follow manufacturer recommendations for maintenance intervals and document all activities in the instrument log.

Optical and Electrical System Issues

Light Source Degradation

Optical analyzers depend on stable light sources for accurate measurements. Light-emitting diodes and lasers have finite lifetimes and gradually lose intensity with use. Symptoms of light source degradation include increased background noise, decreased signal intensity, and deteriorating precision. Most analyzers monitor light source intensity and alert the operator when replacement is needed.

Detector Misalignment or Contamination

Optical detectors can become misaligned or contaminated with debris over time. This condition produces abnormal scatterplots and inaccurate cell classifications. Cleaning procedures for optical components should be performed according to manufacturer specifications, using only approved cleaning agents and techniques.

Electrical Noise and Grounding Issues

Electrical interference from nearby equipment or inadequate grounding can affect analyzer performance. Symptoms include unstable baselines, increased coefficient of variation, and intermittent errors. The instrument should be connected to a dedicated, properly grounded electrical circuit. If electrical interference is suspected, the laboratory should consult with the manufacturer or a qualified biomedical engineer.

Carryover Contamination

Carryover occurs when analyte from one sample is measured in a subsequent sample. This problem is most often detected in measurement procedures with wide reportable ranges, but reagent carryover can be more difficult to detect as it may involve only one pair of measurement procedures [11]. A study of modern chemistry analyzers documented intermittent low total cholesterol results that were traced to reagent carryover from a creatine kinase measurement procedure [11]. The problem resolved when an additional reagent probe wash was applied, and the root cause was eliminated with replacement of the reagent probes [11].

For hematology analyzers, carryover can affect any measured parameter but is particularly problematic for high-concentration analytes such as white blood cells and platelets. The evaluation of the NOVA Celltrak 12 included carryover assessment as part of the validation protocol [9]. Laboratories should perform carryover studies during initial installation and after major maintenance or repair.

The troubleshooting approach for suspected carryover includes:

1. Running a blank or diluent sample immediately after a high-value sample
2. Comparing results from the blank to established baseline values
3. Increasing probe wash frequency or duration
4. Inspecting probes and wash stations for damage or obstruction
5. Replacing worn probes or valves as needed

Urine carryover has been documented on the Siemens Dimension Vista platform, producing rare erroneous results [24]. This finding underscores the importance of understanding carryover risks specific to each instrument platform and implementing appropriate wash protocols.

Quality Control and Calibration

Quality Control Material Selection and Handling

Quality control material for hematology analyzers is limited in some settings, particularly veterinary laboratories [6]. Repeat patient testing quality control (RPT-QC) has been proposed as an alternative method using excess matrix-specific samples [6]. A study of the Sysmex XT-2000iV analyzer in a multi-site veterinary laboratory found that differences between individual analyzer RPT-QC limits were too large to allow for unification of network limits [6]. The automated spreadsheet used for RPT-QC data management successfully highlighted out-of-control events, and trends or shifts were more frequent for commercial quality control material than for RPT-QC [6].

Quality control material should be handled according to manufacturer instructions regarding storage temperature, reconstitution, and stability. Each new lot of quality control material should be validated before routine use, and target values should be established for the specific analyzer in use.

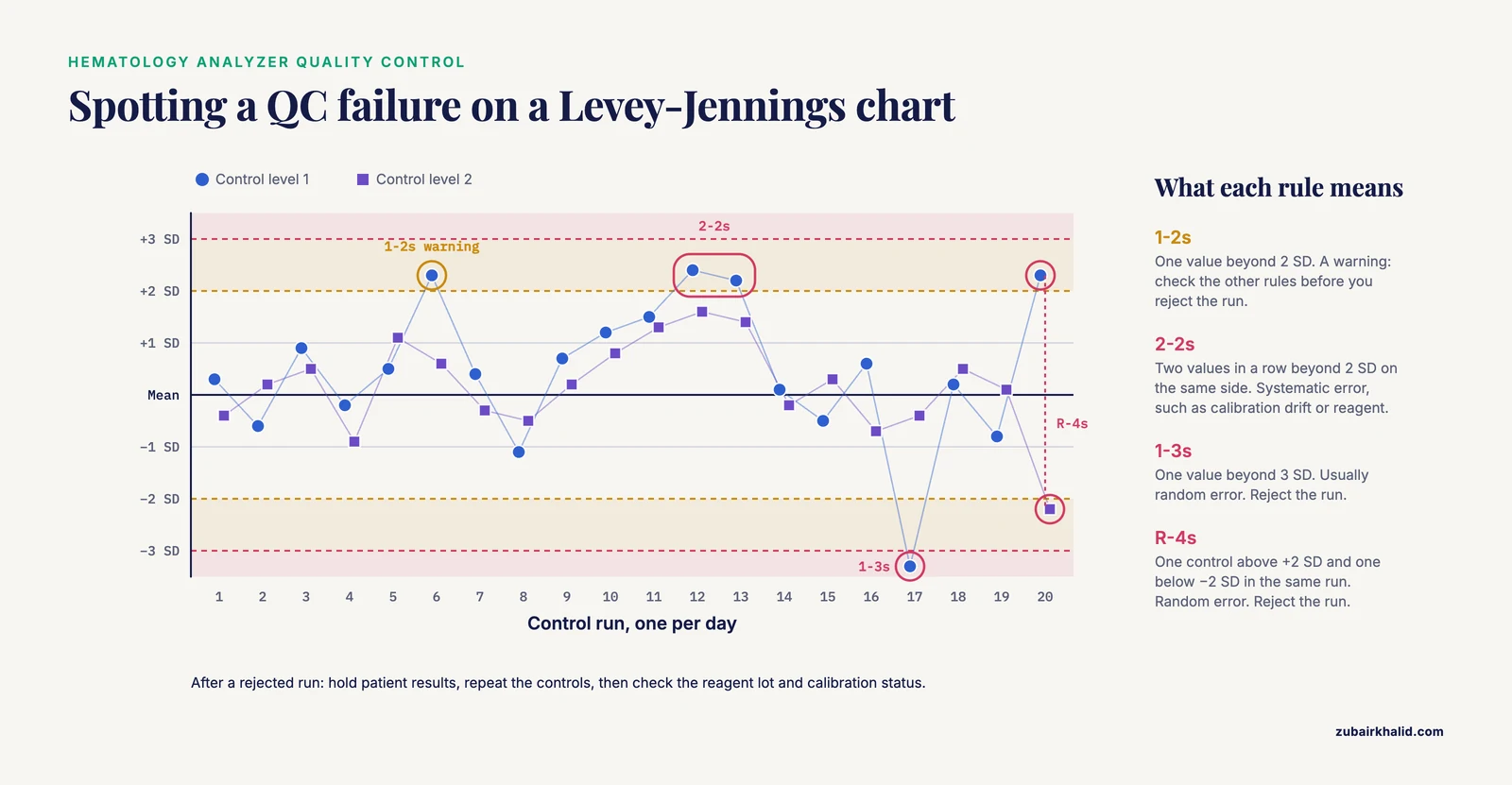

Levey-Jennings Charting and Westgard Rules

Quality control results should be plotted on Levey-Jennings charts and evaluated using Westgard rules or equivalent criteria. Common rules include:

• 1-2s rule: one control value exceeding 2 standard deviations from the mean
• 1-3s rule: one control value exceeding 3 standard deviations from the mean
• 2-2s rule: two consecutive control values exceeding 2 standard deviations on the same side of the mean
• R-4s rule: one control value exceeding 2 standard deviations above the mean and another exceeding 2 standard deviations below the mean in the same run

The study of RPT-QC versus commercial quality control material noted that trends or shifts were more frequent for commercial QCM based on observed performance and a 1-2.5s QC rule than for RPT-QC [6]. Following routine troubleshooting, RPT-QC out-of-control events were resolved with an alternative RPT-QC sample, indicating random error associated with excessive deterioration [6].

Calibration Verification

Calibration should be performed according to manufacturer recommendations and after major maintenance or repair. Calibration verification should be performed at least twice annually or more frequently if required by regulatory or accreditation standards. The bioanalytical method validation guidance from the U.S. Food and Drug Administration emphasizes the importance of demonstrating that the analytical method is reliable and reproducible [4].

The Assay Guidance Manual from the National Center for Advancing Translational Sciences provides additional context on analytical method validation and quality control [3]. These references support the principle that calibration and quality control are essential components of reliable laboratory testing.

Abnormal Histograms and Scatterplots

Red Blood Cell Histogram Abnormalities

The red blood cell histogram displays the distribution of erythrocyte volumes. Abnormal patterns may indicate:

• Left shift or right shift suggesting microcytic or macrocytic populations
• Bimodal distribution suggesting transfusion or mixed cell populations
• Shoulder or tail abnormalities suggesting schistocytes, agglutination, or other morphologic abnormalities

When abnormal RBC histograms are observed, the operator should review the sample for agglutination, which produces characteristic histogram changes. Cold agglutinins can cause RBC clumping that affects MCV, RBC count, and hematocrit. Warming the sample to 37 degrees Celsius may resolve cold agglutinin interference.

Platelet Histogram Abnormalities

Platelet histograms may show interference from red cell fragments, white cell fragments, or platelet clumps. Giant platelets may be counted as red cells, producing spurious results. The mean platelet volume (MPV) is a marker of platelet activity and has been associated with hematological abnormalities [14]. A study of metabolic syndrome patients found weak positive correlations between MPV and RBC count, hemoglobin level, and hematocrit, while a moderate negative correlation was observed between MPV and platelet count [14].

When platelet histogram abnormalities are detected, the operator should consider:

• Reviewing the blood smear for platelet clumps or giant platelets
• Checking the anticoagulant concentration and sample mixing
• Recollecting the sample if platelet clumping is suspected
• Using an alternative method such as manual count or citrated sample if available

White Blood Cell Scatterplot Abnormalities

White blood cell scatterplots display cell populations based on size and granularity. Abnormal patterns may indicate:

• Left shift with increased immature granulocytes
• Atypical lymphocytes or blasts
• Nucleated red blood cells interfering with lymphocyte counts
• Unlysed red cells causing interference

The flagging capabilities of modern analyzers provide increased clinical information and troubleshooting guides [9]. When abnormal scatterplots are observed, the operator should review the blood smear to confirm the analyzer findings and identify any cells that the analyzer cannot classify.

Atypical Derivative Curves

Some coagulation analyzers display clot reaction curves with superimposed first and second derivative curves. A study of atypical APTT derivative curves on the ACL TOP coagulation analyzer found that ellagic acid APTT reagents commonly produce atypical derivative curves despite normal S-shaped clot reaction curves [13]. With silica activator APTT reagents, atypical derivative curves were associated with genuine coagulation abnormalities such as single factor deficiencies and lupus anticoagulants [13]. The presence of atypical derivative curves with silica activator APTTs proved to be a very simple tool when troubleshooting unexpected abnormal APTT results [13].

While this finding relates to coagulation analyzers instead of hematology analyzers, it illustrates the principle that graphical representations of analytical data can provide useful diagnostic information during troubleshooting [13].

Point-of-Care Hematology Analyzers

Point-of-care hematology analyzers present unique troubleshooting considerations. These devices are often used in settings without dedicated laboratory personnel, and their quality control procedures may be limited. The Hilab system, a point-of-care hematology analyzer supported by the Internet of Things and Artificial Intelligence, demonstrated strong correlation with a reference analyzer for most evaluated parameters, with analytes showing coefficients of variation inside limits established according to European Federation of Clinical Chemistry and Laboratory Medicine guidelines [17].

The evaluation of the Hilab system included 450 blood samples encompassing normal and pathological conditions, with flagging capabilities compared to manual microscopy technique presenting high sensibility, specificity, and accuracy [17]. This finding suggests that point-of-care analyzers with advanced flagging systems can support troubleshooting by identifying samples that require manual review.

However, point-of-care analyzers may have limitations in calibration and control procedures. The Hilab system evaluation noted that most handheld CBC devices commercially available show high prices and are not liable to calibration or control procedures, which results in poor quality compared to standard hematology instruments [17]. Laboratories using point-of-care analyzers should establish appropriate quality control procedures and verify performance against a reference method.

Maintenance Procedures and Schedules

Daily Maintenance

Daily maintenance activities typically include:

• Running quality control materials
• Performing background or blank counts
• Cleaning the external surfaces of the instrument
• Checking reagent levels and waste container capacity
• Reviewing the instrument log for errors or warnings

The day-per-day maintenance of the Landwind LW D3600 hematological analyzer has been described with clinical aspects and quality verification [20]. Regular maintenance is essential for consistent analyzer performance and reliable results.

Weekly Maintenance

Weekly maintenance may include:

• Cleaning the aperture or flow cell
• Performing a deeper clean cycle
• Inspecting tubing for wear or damage
• Checking the waste line for blockages
• Verifying proper functioning of the printer or data output system

Monthly and Quarterly Maintenance

Monthly and quarterly maintenance may include:

• Replacing tubing or pump components
• Cleaning optical components
• Performing calibration verification
• Running linearity studies
• Inspecting and cleaning the sample probe

The built-in thermal printer in the Sysmex KX-21 hematology analyzer has been the subject of failure and maintenance studies [22]. Printer failures can affect result documentation and should be addressed promptly to maintain complete records.

Annual Maintenance

Annual maintenance typically includes:

• Full calibration by manufacturer service personnel
• Replacement of consumable components
• Performance verification using reference materials
• Software updates if applicable

The modular component design of many analyzers makes preventive maintenance relatively easy [7]. Laboratories should follow manufacturer recommendations for maintenance intervals and document all activities in the instrument maintenance log.

Records and Documentation

Instrument Log

A comprehensive instrument log should document:

• Daily quality control results
• Maintenance activities and dates
• Error messages and troubleshooting actions
• Reagent lot numbers and expiration dates
• Calibration and calibration verification dates
• Service visits and repairs

The autovalidation procedures emphasize that all criteria defined in the algorithm have to be documented and approved by the laboratory manager [15]. This documentation principle applies equally to troubleshooting activities, which should be recorded to support continuous improvement and regulatory compliance.

Quality Control Records

Quality control records should include:

• Control material lot numbers and expiration dates
• Target values and acceptable ranges
• Daily results plotted on Levey-Jennings charts
• Corrective actions taken for out-of-control results
• Documentation of any changes to control material lots

The repeat patient testing quality control study demonstrated that an automated spreadsheet successfully highlighted out-of-control events for RPT-QC [6]. This finding supports the use of automated data management tools for quality control documentation.

Troubleshooting Documentation

When troubleshooting is performed, the following information should be documented:

• Date and time of the problem
• Error message or abnormal result pattern
• Samples affected
• Actions taken
• Resolution or escalation
• Follow-up monitoring

This documentation supports pattern recognition and helps identify recurring problems that may require more extensive intervention.

Common Failure Patterns and Their Root Causes

Intermittent Errors

Intermittent errors that occur sporadically are often caused by:

• Loose electrical connections
• Intermittent clogs or partial obstructions
• Air bubbles that form under specific conditions
• Software glitches that occur under particular sequences of operations

The study of reagent carryover in chemistry analyzers noted that the problem seemed to occur intermittently, approximately once per week [11]. This pattern made the problem difficult to detect initially, and the insidious nature of reagent carryover required careful evaluation to identify [11].

Systematic Bias

Systematic bias that affects all samples in one direction may be caused by:

• Calibration drift
• Reagent deterioration
• Incorrect reagent lot
• Environmental factors such as temperature or humidity

When systematic bias is detected, the laboratory should verify calibration, check reagent lot numbers, and review environmental conditions.

Parameter-Specific Problems

Problems affecting only specific parameters may be caused by:

• Reagent problems specific to that measurement
• Optical or electrical issues affecting specific detectors
• Interference from sample components
• Algorithm or software issues specific to that parameter

The evaluation of the NOVA Celltrak 12 found that RDW, MCV, and MPV had lower correlation coefficients than other measured parameters [9]. This finding suggests that certain parameters may be more susceptible to analytical variation and may require additional attention during troubleshooting.

Batch-Related Problems

Problems affecting a specific batch of samples may be caused by:

• Sample collection or handling issues
• Anticoagulant problems
• Environmental conditions during transport or storage
• Operator error during sample preparation

When batch-related problems are suspected, the laboratory should review sample collection procedures and investigate any common factors among affected samples.

Professional Escalation Criteria

Laboratory personnel should escalate troubleshooting to manufacturer support or senior technical staff when:

1. The problem persists after multiple troubleshooting attempts
2. The problem affects patient results and cannot be resolved promptly
3. Hardware damage is suspected
4. The problem recurs despite corrective action
5. The troubleshooting procedure requires specialized tools or training

The World Health Organization Laboratory Quality Management System Handbook provides guidance on quality management practices that support effective troubleshooting and continuous improvement [1]. The Laboratory Biosafety Manual provides additional context on safe laboratory practices that should be followed during instrument maintenance and troubleshooting [2].

When escalating, the laboratory should provide:

• A complete description of the problem
• Documentation of troubleshooting steps already performed
• Quality control data and instrument logs
• Sample information and results affected
• Any relevant environmental or operational factors

Safety Considerations During Troubleshooting

Biological Hazards

Hematology analyzers process blood samples that may contain infectious agents. During troubleshooting and maintenance, laboratory personnel may be exposed to:

• Bloodborne pathogens in sample residues
• Aerosols generated during cleaning or priming procedures
• Contaminated waste materials

The World Health Organization Laboratory Biosafety Manual provides guidance on safe handling of biological materials and appropriate use of personal protective equipment [2]. Laboratory personnel should follow standard precautions at all times when working with analyzers that have processed blood samples.

Chemical Hazards

Cleaning solutions and reagents used in hematology analyzers may present chemical hazards. Material safety data sheets should be reviewed before handling any cleaning agents. Appropriate personal protective equipment should be worn, including gloves and eye protection.

Electrical Hazards

Hematology analyzers contain electrical components that present shock hazards during maintenance. The instrument should be powered off and unplugged before any maintenance that involves opening panels or accessing internal components. Only qualified personnel should perform electrical repairs.

Sharps Hazards

Sample probes and other components may present sharps hazards during cleaning and maintenance. Care should be taken when handling these components, and appropriate disposal procedures should be followed for any damaged parts.

Limitations of Troubleshooting Guidance

Troubleshooting guidance, including the information presented in this article, has inherent limitations. Specific analyzer models may have unique features, error codes, and maintenance requirements that are not addressed in general guidance. The operator should always refer to the manufacturer's operator manual and service documentation for model-specific information.

The evidence base for hematology analyzer troubleshooting includes studies of specific instruments and platforms. Findings from one analyzer model may not apply to other models or manufacturers. For example, the evaluation of the NOVA Celltrak 12 was performed over a 6-week period and compared performance to the Coulter S Plus VI as the reference instrument [9]. These findings are specific to the instruments evaluated and should not be generalized without appropriate validation.

Similarly, the study of RPT-QC for the Sysmex XT-2000iV analyzer in a multi-site veterinary laboratory found that differences between individual analyzer RPT-QC limits were too large to allow for unification of network limits [6]. This finding may not apply to other analyzer models or laboratory networks.

Laboratories should validate troubleshooting procedures for their specific instruments and sample populations. The National Center for Biotechnology Information provides literature resources that can support evidence-based troubleshooting decisions [5].

Frequently Asked Questions

What should I do first when a hematology analyzer reports an error?

The first action is to document the exact error message and any associated abnormal results. Review the instrument log for recent maintenance activities, reagent changes, or other events that may be related. Check sample quality and collection conditions if the error is associated with specific samples. Run a prime or flush cycle to address potential clogs or air bubbles. If the error persists, analyze quality control materials to determine whether the problem affects instrument function or is specific to particular samples.

How can I distinguish between a sample problem and an instrument problem?

Analyze a known normal sample or quality control material. If the control material produces acceptable results, the problem is likely sample-specific. Review the sample for hemolysis, lipemia, clots, or inadequate anticoagulant. If the control material also produces abnormal results, the problem is likely instrument-related and requires further troubleshooting of fluidics, optics, or reagents.

What causes carryover in hematology analyzers and how can I prevent it?

Carryover occurs when material from one sample contaminates a subsequent sample. This can happen through inadequate probe washing, damaged probes or valves, or reagent carryover between measurement procedures. Prevention includes following manufacturer recommendations for probe wash cycles, performing regular maintenance on probes and wash stations, and running blank samples after high-value samples when carryover is suspected. The study of reagent carryover in chemistry analyzers found that the problem resolved when an additional reagent probe wash was applied and the root cause was eliminated with replacement of the reagent probes [11].

Why do my quality control results show a trend or shift?

Trends or shifts in quality control results may indicate calibration drift, reagent deterioration, or environmental changes. Review the Levey-Jennings chart to characterize the pattern. Check reagent lot numbers and expiration dates. Verify that the quality control material has been handled and stored correctly. If the trend or shift persists, perform calibration verification and consider contacting manufacturer support.

How should I handle abnormal histograms or scatterplots?

Abnormal histograms or scatterplots should trigger a review of the blood smear to confirm analyzer findings. The flagging capabilities of modern analyzers provide increased clinical information and troubleshooting guides [9]. Consider sample-specific factors such as agglutination, platelet clumping, or nucleated red blood cells. If the abnormal pattern is consistent across multiple samples, investigate potential reagent or instrument issues.

What is repeat patient testing quality control and when should I use it?

Repeat patient testing quality control (RPT-QC) is an alternative to commercial quality control material that uses excess matrix-specific samples. It has been proposed for settings where commercial quality control material is limited, such as veterinary laboratories [6]. A study of the Sysmex XT-2000iV analyzer found that RPT-QC could highlight out-of-control events and that trends or shifts were more frequent for commercial quality control material than for RPT-QC [6]. However, differences between individual analyzer RPT-QC limits were too large to allow for unification of network limits [6].

How often should I perform maintenance on my hematology analyzer?

Maintenance frequency depends on the analyzer model, sample volume, and manufacturer recommendations. Daily maintenance typically includes quality control, background counts, and external cleaning. Weekly maintenance may include aperture cleaning and tubing inspection. Monthly and quarterly maintenance may include component replacement and calibration verification. Annual maintenance typically includes full calibration and performance verification by manufacturer service personnel. The systematic maintenance plan should be documented and followed consistently [18].

When should I escalate a troubleshooting issue to manufacturer support?

Escalate to manufacturer support when the problem persists after multiple troubleshooting attempts, when patient results are affected and cannot be resolved promptly, when hardware damage is suspected, or when the problem recurs despite corrective action. Provide complete documentation of the problem, troubleshooting steps performed, quality control data, and instrument logs to facilitate efficient resolution.

Related Diagnostic Guides

• Common Gram Staining Errors and How to Fix Them
• DNA Ligation Troubleshooting: Common Problems and Solutions for Cloning Success
• BCA Assay Troubleshooting: Color Development and Compatibility Issues
• Laboratory Investigation: A Step-by-Step Approach to Troubleshooting Failed Experiments
• Common Errors in Disk Diffusion Testing and How to Avoid Them

References and Further Reading

• Laboratory Quality Management System Handbook. World Health Organization.
• Laboratory Biosafety Manual. World Health Organization.
• Assay Guidance Manual. National Center for Advancing Translational Sciences.
• Bioanalytical Method Validation Guidance. U.S. Food and Drug Administration.
• NCBI Literature Resources. National Center for Biotechnology Information.
• Repeat patient testing-quality control compared to commercial quality control material for the Sysmex XT-2000iV hematology analyzer in a multi-site veterinary laboratory.. Veterinary clinical pathology, 2024.
• Clinical evaluation of Eastman Kodak's Ektachem 400 Analyzer.. Clinical chemistry, 1983.
• Generation of full-length circular RNA libraries for Oxford Nanopore long-read sequencing.. PloS one, 2022.
• Field evaluation of the NOVA Celltrak 12 hematology analyzer.. American journal of clinical pathology, 1994.
• Simple image analysis for reliability control of column agglutination test in pretransfusion testing.. Transfusion medicine (Oxford, England), 2026.
• Beware of carryover in modern chemistry analyzers.. Clinical chemistry and laboratory medicine, 2010.
• Analytical performance of three point of care methods for pleural fluid pH analysis.. Clinical biochemistry, 2013.
• A study of atypical APTT derivative curves on the ACL TOP coagulation analyser.. International journal of laboratory hematology, 2011.
• Mean platelet volume as a biomarker of anemia and platelet disorders among metabolic syndrome patients in Northwest Ethiopia.. 2025.
• National recommendations of the Working Group for Post-analytics of the Croatian Society of Medical Biochemistry and Laboratory Medicine: implementation of autovalidation procedures.. 2025.
• Evaluation of commercial point-of-care glucometers for detection and monitoring of neonatal hypoglycemia in resource-constrained settings.. 2025.
• Hilab system, a new point-of-care hematology analyzer supported by the Internet of Things and Artificial Intelligence. Scientific Reports, 2022.
• Development and Expansion of Management Software for New Automatic Hematology Analyzer Based on PC/Windows. 2021 IEEE 16th Conference on Industrial Electronics and Applications (ICIEA), 2021.
• Evaluation and Comparison of Stability and Reliability of CBC Parameters Determined by Using Automatic Celltac G MEK-9100 Hematology Analyzer during Extended Storage at 4°C. 2018.
• Day-Per-Day Maintenance and Six Sigma of the Landwind LW D3600 Hematological Analyzer: Clinical Aspects and Quality Verification. Archives of hematology and blood diseases, 2019.
• Development of management software for new Automatic Hematology analyzer based on PC/Windows. Annual Conference of the IEEE Industrial Electronics Society, 2016.
• Failures and Maintenance of Built-in Thermal Printer in Sysmex KX-21 Hematology Analyzer. 2010.
• Expert assistant for a clinical hematology blood cell analyzer. Proceedings of SPIE the International Society for Optical Engineering, 1989.
• Rare erroneous results on the Siemens Dimension Vista® platform due to urine carryover: A warning to current users. Clinical Biochemistry, 2016.

This article is educational and does not replace validated laboratory procedures, institutional biosafety review, manufacturer instructions, or professional interpretation.
